DryPol® System 3 PLUS

DryPol® System 3 PLUS is a unique Czech product that combines active electroosmosis of the wired and wireless types into one electronic, computer processor-controlled device, which ensures fast, permanent and high-quality insulation of the entire building from rising ground moisture.

The uniqueness lies in the combination of classic mild wire electroosmosis and non-contact electroosmosis (pulse generator) as a support system. As a result, rising moisture is quickly removed and at the same time the building is insulated not only in places where conductors with wire electroosmosis electrodes are installed, but also where they are not distributed - i.e. floors or places technologically inaccessible for the installation of conductors (e.g. paneled walls , masonry behind front walls, building foundations, etc.). The range of the transmitter module is up to 25 meters in all directions from the device, including through walls, furniture, doors, etc.

DryPol® System 3 PLUS moisture remover meets Czech and international building standards for waterproofing buildings and rehabilitation of damp masonry by electroosmosis.

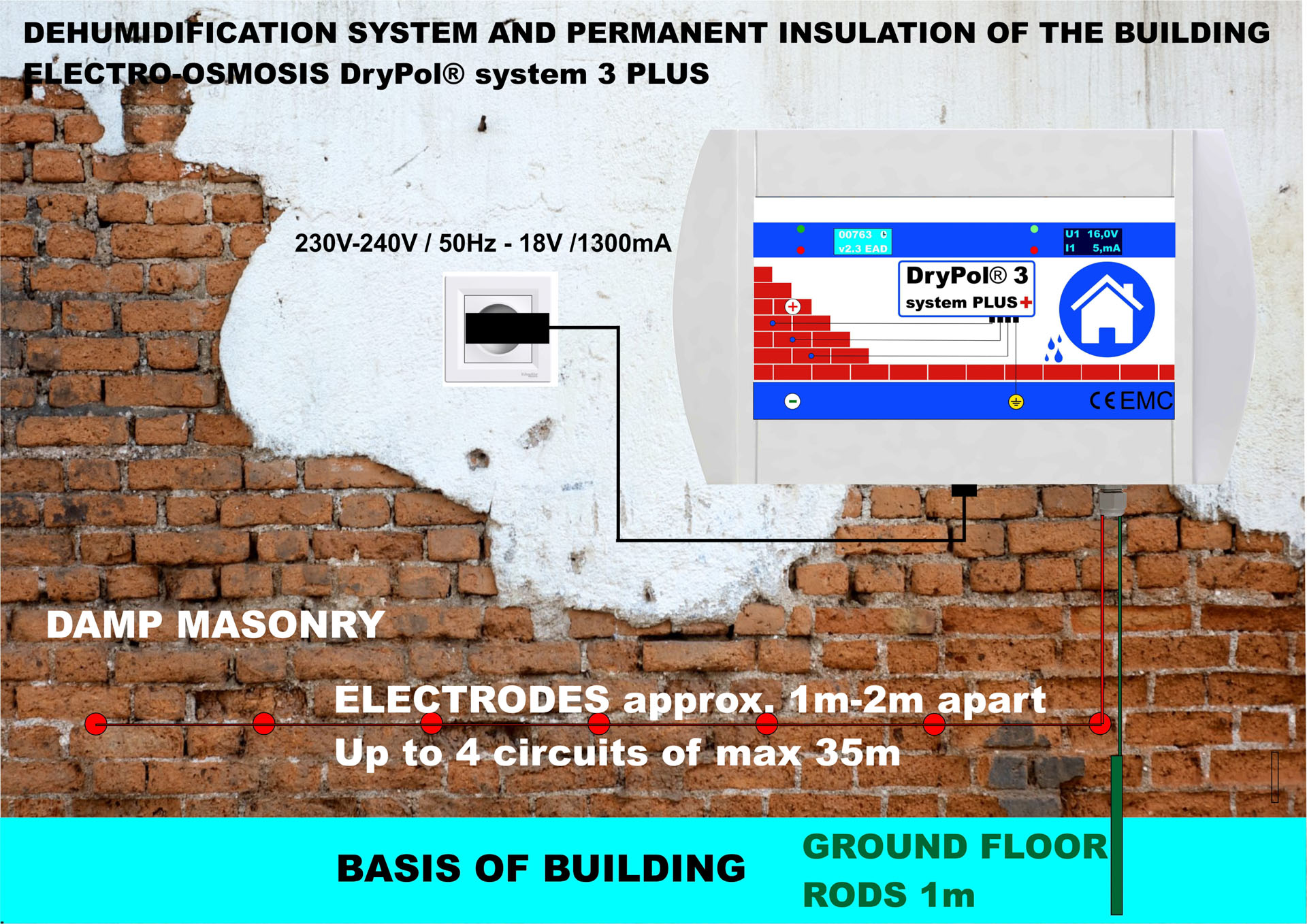

STAVBA = BUILDING

ELEKTRODA = ELECTRODE

VLHKE ZDIVO = DAMP MASONRY

PRIZEMI / SKLEP = GROUND FLOOR / CELLAR

ZAKLAD STAVBY = FOUNDATIONS

ZAMNICI TYC = GROUND ROD

PODLOZI STAVBY = SUBSOIL

DryPol® systém 3 PLUS device manual

DryPol® system 3 PLUS is an electronic, computer-controlled device designed for the rapid and effective insulation of the whole building from rising damp using a single device!
The uniqueness of the device lies in the combination of classic electrode electroosmosis and contactless electroosmosis (using a pulse generator) as a support system insulating the building even where the electroosmosis electrodes are not installed – meaning including flooring and inaccessible masonry where electrode installation is not possible (e.g., lined walls, concealed masonry, foundations, etc.). The transmitter module range is up to 25 m in all directions, including through walls, furniture, doors etc.
This double system ensures rapid, permanent and high-quality insulation of the whole building from capillary rising damp. The product meets both Czech and international building standards: ČSN P730610 and the Austrian-German ÖNORM 3355-2 standard for waterproofing in buildings/rehabilitation of damp masonry using electroosmosis.

Two signal distribution technologies and types of electrode installed in the masonry can be used to send the signal from the control unit to the masonry, depending on customer requirements:

1. Titanium wiring and titanium electrodes. This installation method ensures compromise-free masonry insulation without possible electrode degradation inside the masonry. Titanium is a metal not affected by corrosion caused by the creation of an electric cell inside the masonry resulting in a destructive electro-chemical process where the electrodes are installed. The ground rod is made of zinc, as per tradition.
2. Classic insulated conductor with stainless steel electrodes in the masonry. This installation method is cheaper but a little less durable. The stainless steel electrodes will decay over the long term (around 10 years) on site due to the electro-chemical process as they operate inside the masonry. The electrodes will thus probably need replacing, yet this is not difficult from the construction point of view, nor is it expensive. Installation with classic conductors and stainless steel electrodes is cheaper and gives the same performance as with titanium conductors and electrodes. The ground rod is made of zinc, as per tradition.

System power and consumption:

The whole system is powered through an 18 V/1300 mA adapter plugged into the 230 V/50 Hz mains. With a power input of around 15 W, the consumption of the whole system under 24-hour continuous operation is around CZK 500 per year.

Operation and maintenance of the DryPol® system 3 PLUS device:
The DryPol® systém 3 PLUS device is completely maintenance-free and does not need any regular configuration or modification by the customer. The customer only needs to check that their device is working properly, which is signalled by flashing green LEDs on the front of the device. Constant or flashing red LEDs on the left part of the device next to the display mean a fault in the transmitting part of the DryPol® system 3 PLUS device. Illuminated red LEDs on the right mean a fault in the installed DryPol® system 3 PLUS conductor circuit.

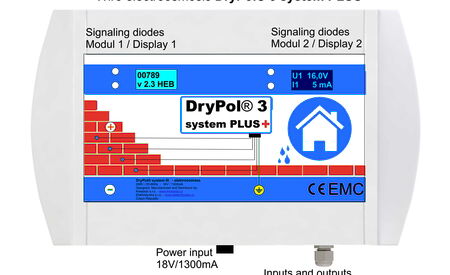

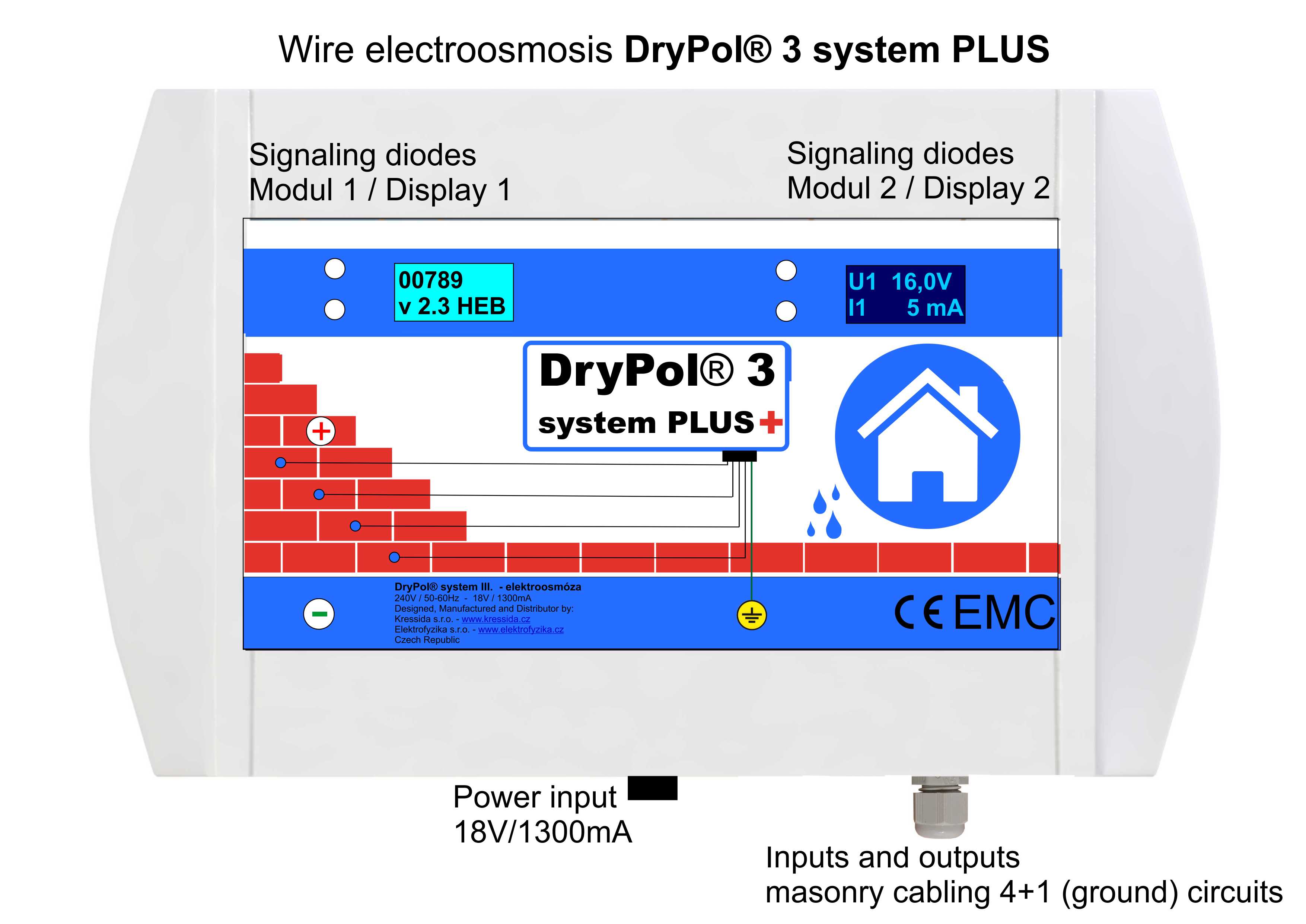

Displays and LEDs:

• Display 1 is not illuminated during device operation, and illuminates only if the electricity supply is interrupted for one minute. The display shows data about the device configuration, software version, and the number of hours of operation since the device was first switched on
• Display 2 shows voltage and current values in the conductors. Their value changes depending on the level of moisture in the building material in which the electrodes and conductors are installed. This means you can monitor the masonry drying process through changes in the voltage and current values.

If the red LEDs light up, the system switches off or there is a different fault, please immediately call our customer line: +420 800 212 800.
We supply the whole electroosmosis installation on a turnkey basis after prior measurement of the building and the preparation of a price calculation meeting the specific requirements of the customer.
